CAMBRIDGE, Mass. — Lidar—the remote-sensing technology that uses rapid pulses of infrared light to calculate precise distances and generate high-resolution, three-dimensional maps of complex environments—has long been championed as an indispensable asset for autonomous navigation. By allowing self-driving vehicles, aerial drones, and automated industrial machinery to detect obstructions in their paths with pinpoint accuracy, lidar serves as the critical visual cortex for modern robotics.
Yet, mainstream adoption has historically been stymied by physical limitations. Conventional mechanical lidar systems rely on bulky, rotating optical components to sweep beams across a scene. These moving parts are not only expensive and physically fragile, but they also degrade over time due to mechanical wear and tear. Furthermore, their sheer size and cost make them impractical for widespread commercial deployment across smaller, budget-sensitive consumer or industrial platforms.
To circumvent these hurdles, researchers worldwide have focused intensely on solid-state alternatives, particularly silicon-photonics chips. These semiconductor devices manipulate light directly using integrated optics rather than traditional electrical signals, promising a future of durable, compact, and affordable lidar systems without a single moving part. However, a major engineering roadblock has continually thwarted progress: integrated silicon-photonics lidar systems have traditionally suffered from a severely restricted field of view.
Now, a team of researchers at the Massachusetts Institute of Technology (MIT) has shattered this technological barrier. By engineering an innovative array of integrated antennas capable of operating in exceptionally close proximity without destructive interference, the MIT team has designed a silicon-photonics chip that delivers a wide-angle field of view alongside remarkably low optical noise. The breakthrough promises to accelerate the commercial realization of robust, solid-state lidar systems tailored for high-stakes applications ranging from autonomous driving to aerial topography and smart construction site monitoring.
Chronology of the Breakthrough
The path toward overcoming the solid-state lidar viewing restriction was built upon years of foundational optics research, culminating in a breakthrough study recently published in the journal Nature Communications.
The investigative effort was spearheaded by senior author Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT, alongside lead author and EECS graduate student Henry Crawford-Eng. The research collective also included EECS graduate students Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh.
Phase 1: Identifying the Optical Phased Array Limitation
Traditional silicon-photonics lidar bypasses mechanical rotation by utilizing an integrated optical phased array (OPA). At the core of an OPA lies a network of integrated antennas. Each antenna is engineered with microscopic, regularly spaced surface variations known as corrugations. When an input source floods the chip with light, these corrugations cause the photons to scatter upward and out of the semiconductor substrate.
Engineers steer the resulting outgoing light beam electronically by dynamically shifting the phase of the light directed to each individual antenna. This adjustment changes the constructive and destructive interference patterns, altering the release angle of the beam without moving a single physical part.
Historically, however, placing these antennas close together triggered a cascade of complications. When neighboring antennas sit in tight proximity, they engage in optical coupling—a phenomenon where light leaks between adjacent channels, heavily scrambling the optical output.
Phase 2: The Trade-off Between Crosstalk and Grating Lobes

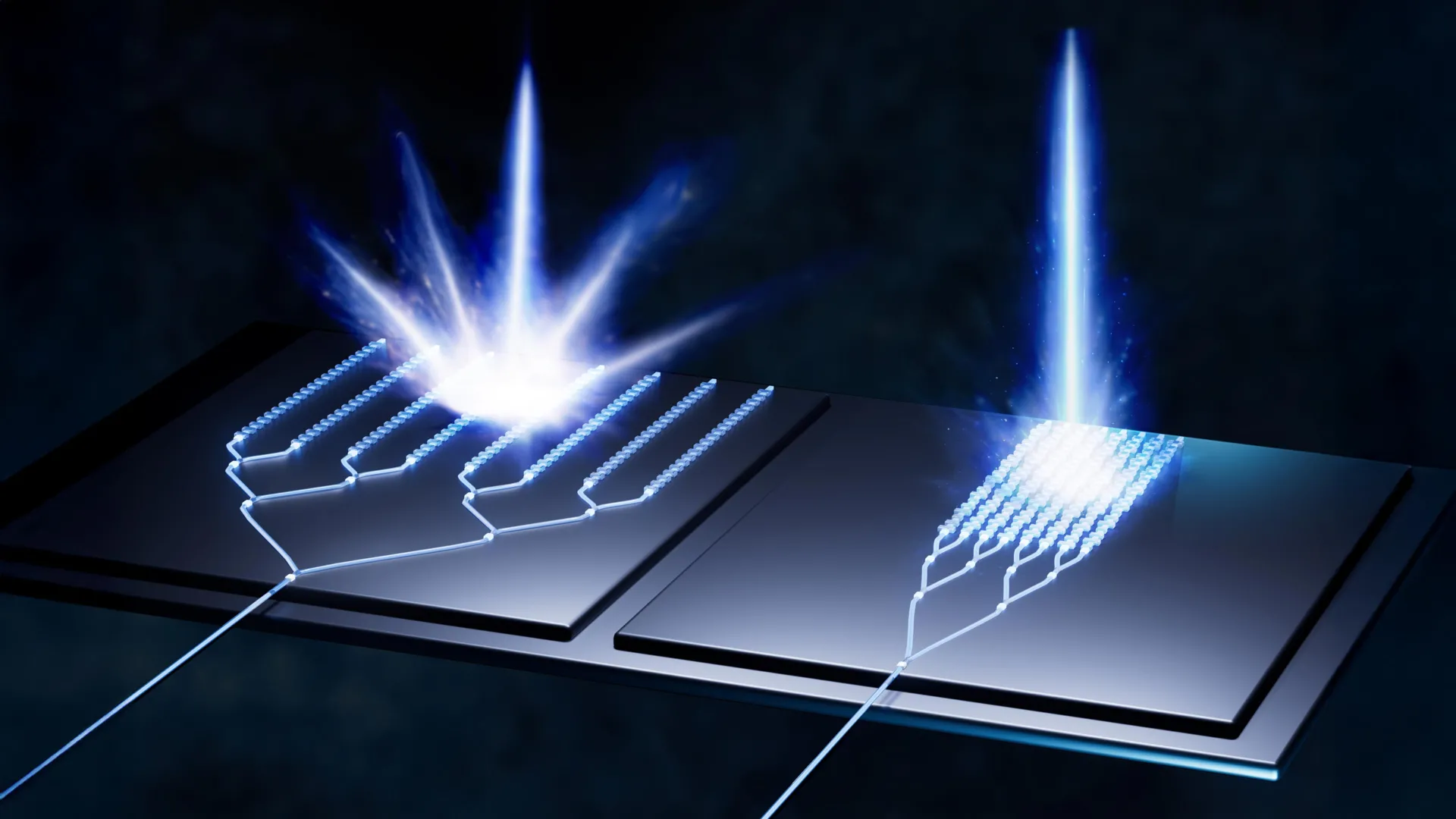

To prevent this destructive cross-interference, early engineering approaches simply increased the physical distance between adjacent antennas. But widening the gap immediately introduced a secondary, equally severe problem: the emergence of "grating lobes."
When antennas are spaced too far apart, the optical array inadvertently generates multiple redundant copies of the primary beam at oblique angles. These phantom copies—or grating lobes—consume valuable laser energy, confuse the sensor’s interpretive algorithms, and trigger false positive obstacle detections. More critically, they severely restrict the angular range over which the primary beam can safely travel before it becomes indistinguishable from its replicas, effectively blinding the sensor to its peripheral surroundings.
Phase 3: The Multi-Geometry Antenna Solution
Recognizing that uniform antenna designs inevitably led to maximum optical coupling when packed densely, the MIT team abandoned conventional uniformity. Instead, they theorized that diversifying the physical structures within the array could break the cycle of interference.
Using rigorous theoretical calculations and advanced electromagnetic modeling, the researchers designed a repeating architecture composed of three distinct antenna geometries. By systematically varying both the width of the individual antennas and the dimensions and spatial placement of their surface corrugations, the team altered each antenna’s "propagation coefficient"—the mathematical value dictating how light travels through that specific structural channel.
Phase 4: Balancing Divergent Geometries with Uniform Output
While altering the physical geometries successfully severed the optical crosstalk, it introduced a new dilemma: how to force structurally distinct antennas to behave in absolute unison.
Typically, altering an antenna’s geometry fundamentally shifts its emission properties, causing different sections of an array to scatter light at divergent intensities and angles. The MIT team overcame this through extensive theoretical modeling, establishing a framework where three distinct geometries could be mathematically tuned to fulfill three strict operational criteria:
- Every individual antenna within the repeating trio had to emit an identical volume of light.
- Each antenna was required to release its optical beam at the exact same angle when fed a matching wavelength.
- The emission angle had to scale uniformly across the entire semiconductor array during active beam steering.
Following successful computer simulations, the team fabricated the novel OPA chip within the advanced cleanroom facilities at MIT.nano. Experimental trials validated the theoretical models, confirming that the integrated array achieved unprecedented performance metrics.
Supporting Data and Performance Metrics
The experimental results achieved by the MIT research team mark a radical departure from the operational performance of conventional silicon-photonics arrays.
- Reduction in Optical Crosstalk: Under standard experimental conditions, a conventional optical phased array featuring tightly packed, identical antennas suffers from approximately 100 percent optical coupling—rendering the system unusable due to severe signal scrambling. The MIT multi-geometry antenna design successfully slashed this destructive interference to merely 1 percent.
- Beam Quality and Field of View: Despite the dense packing required for wide-angle performance, the chip generated a single, exceptionally clean, and precise primary beam.
- Elimination of Grating Lobes: By successfully narrowing antenna spacing without triggering crosstalk, the array eliminated the formation of disruptive grating lobes across the scanned arc, allowing the sensor to sweep a broad field of view cleanly and predictably.
The research was supported financially and logistically by a broad coalition of public and private entities, including the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship, with core fabrication executed utilizing the state-of-the-art resources of MIT.nano.
Official Responses and Expert Analysis
The academic and engineering communities have greeted the MIT publication with enthusiasm, viewing the architecture as a foundational milestone for chip-scale optics.
"The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously," noted Dr. Jelena Notaros, senior author of the study and Associate Professor of Electrical Engineering and Computer Science at MIT.
Lead author Henry Crawford-Eng emphasized the immense difficulty of harmonizing disparate physical structures into a cohesive optical engine. "We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics," Crawford-Eng explained. "While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently."
Co-author Andres Garcia Coleto highlighted how the innovation directly resolves the peripheral blindness inherent in earlier autonomous vehicle navigation architectures. "Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor," Garcia Coleto stated, pointing out that this prevents the restricted angular limitations that previously hampered peripheral threat detection.
Independent experts not involved in the study have echoed the significance of the findings. Dr. Joyce Poon, a professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, offered high praise for the architectural elegance of the work.
"This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas," Dr. Poon remarked. "The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."
Broader Implications for Industry and Technology
The practical ramifications of the MIT silicon-photonics breakthrough extend far beyond the laboratory, offering transformative potential across multiple commercial sectors reliant on spatial awareness and computer vision.
1. Autonomous Vehicle Evolution
For the automotive sector, the transition to solid-state, chip-scale lidar represents the holy grail of mass-market autonomy. Current production vehicles relying on mechanical lidar units face aesthetic, aerodynamic, and financial constraints due to roof-mounted spinning drums. Solid-state sensors can be seamlessly embedded flush into vehicle body panels, headlamps, or bumpers. By combining a wide field of view with high durability and low manufacturing costs enabled by standard semiconductor fabrication processes, this technology could accelerate the commercial deployment of Level 4 and Level 5 autonomous passenger vehicles.
2. Aerial Mapping and Aerospace
Unmanned aerial vehicles (UAVs) and commercial mapping aircraft impose strict payload weight and power consumption limits. Traditional mechanical scanning assemblies add dead weight and mechanical vulnerability during turbulent flight conditions. Compact, solid-state silicon-photonics lidar chips offer ultra-lightweight alternatives capable of rendering high-density topographical maps and 3D structural models from the air with exceptional reliability.
3. Industrial Automation and Construction Monitoring
Beyond transit, robust solid-state sensors are uniquely suited to harsh industrial environments characterized by heavy vibration, dust, and debris—conditions that routinely degrade or destroy delicate mechanical scanning mirrors. Fixed-position lidar arrays utilizing the MIT antenna design can be deployed across automated warehouses, factories, and active construction sites to continuously monitor structural progression, track inventory, and ensure workplace safety through real-time hazard detection.
Future Outlook
With the fundamental physics of the antenna-spacing dilemma successfully addressed, the MIT research group is already looking ahead. The team plans to refine their microfabrication techniques to push the angular viewing boundaries even further, while simultaneously exploring secondary theoretical approaches that emerged during the course of their foundational calculations. As these chip-scale systems transition from academic prototypes to commercial manufacturing pipelines, the horizon of robust, ubiquitous solid-state vision is drawing rapidly closer.
