SEOUL — In a major development that could help alleviate severe computing bottlenecks driven by the explosive growth of generative artificial intelligence (AI), a multi-institutional team of South Korean researchers has successfully engineered a programmable photonic integrated circuit capable of slowing down, caching, and manipulating light on-demand.

The breakthrough, spearheaded by a collaborative team from Seoul National University (SNU) and the University of Seoul, addresses one of the most stubborn physical limitations in optical engineering: light’s uncompromising velocity. By allowing engineers to dynamically control both the speed and spatial profile of optical signals within a silicon nitride platform, the new architecture paves the way for fully reconfigurable, software-defined optical computing and ultra-fast data center infrastructure.

The findings of this landmark study were recently published in the prestigious international journal Advanced Science.

Main Facts: Overcoming the Speed Limit of Light

Traditional electronic semiconductors are rapidly approaching their physical and thermal limits. Driven by the massive computational demands of large-scale AI models, data centers and servers consume staggering amounts of electrical energy while struggling against latency and bandwidth bottlenecks. These limitations have accelerated global research into optical computing—a paradigm that utilizes photons instead of electrons to process and transmit data at unprecedented speeds with minimal energy consumption.

However, light possesses an inherent characteristic that has long hindered its application in computing architecture: it moves at a fixed, blistering speed ($c$ in a vacuum, or slightly slower through physical media). Unlike electrical signals, which can be easily stalled, stored, buffered, or synchronized using standard electronic memory components, optical signals are notoriously difficult to delay or hold in place temporarily.

Without effective optical buffers and memory mechanisms, building practical optical computers has remained an elusive goal.

To bypass this hurdle, the research team—led by Professors Namkyoo Park and Sunkyu Yu from the Department of Electrical and Computer Engineering at Seoul National University, alongside Professor Xianji Piao from the University of Seoul—developed a novel programmable photonic integrated circuit (PIC). Rather than relying on fixed-function optical components, the newly designed circuit treats two foundational optical states within coupled-resonator systems as a unified degree of freedom, allowing operators to dynamically adjust signal delay, bandwidth, and pulse shaping in real time.

Chronology: The Evolution of Optical Delay and the Path to Programmability

To understand the significance of the South Korean team’s achievement, it is helpful to trace the technical evolution of optical signal manipulation:

• The Rise of Optical Communication: As data transmission shifted heavily toward fiber optics and silicon photonics, moving signals quickly across networks became standard practice. However, sheer speed introduced synchronization challenges, requiring signals traveling along different pathways to arrive at exact, coordinated times.
• The Advent of CRIT: To resolve synchronization and delay issues, physicists turned to Coupled-Resonator-Induced Transparency (CRIT). CRIT utilizes destructive and constructive interference among multiple optical resonators to allow light within specific frequency ranges to pass through a device while drastically reducing its group velocity—effectively creating "slow light."
• The Fixed-Device Bottleneck: Historically, CRIT-based devices were manufactured with fixed parameters. Once a photonic chip was fabricated, its operating frequency range, delay capacity, and bandwidth were permanently locked. If an engineer required a longer delay or a different operating frequency, they were forced to design and fabricate an entirely new physical chip from scratch. This rigidity dramatically inflated development costs, extended production cycles, and created a major roadblock for scalable optical systems.

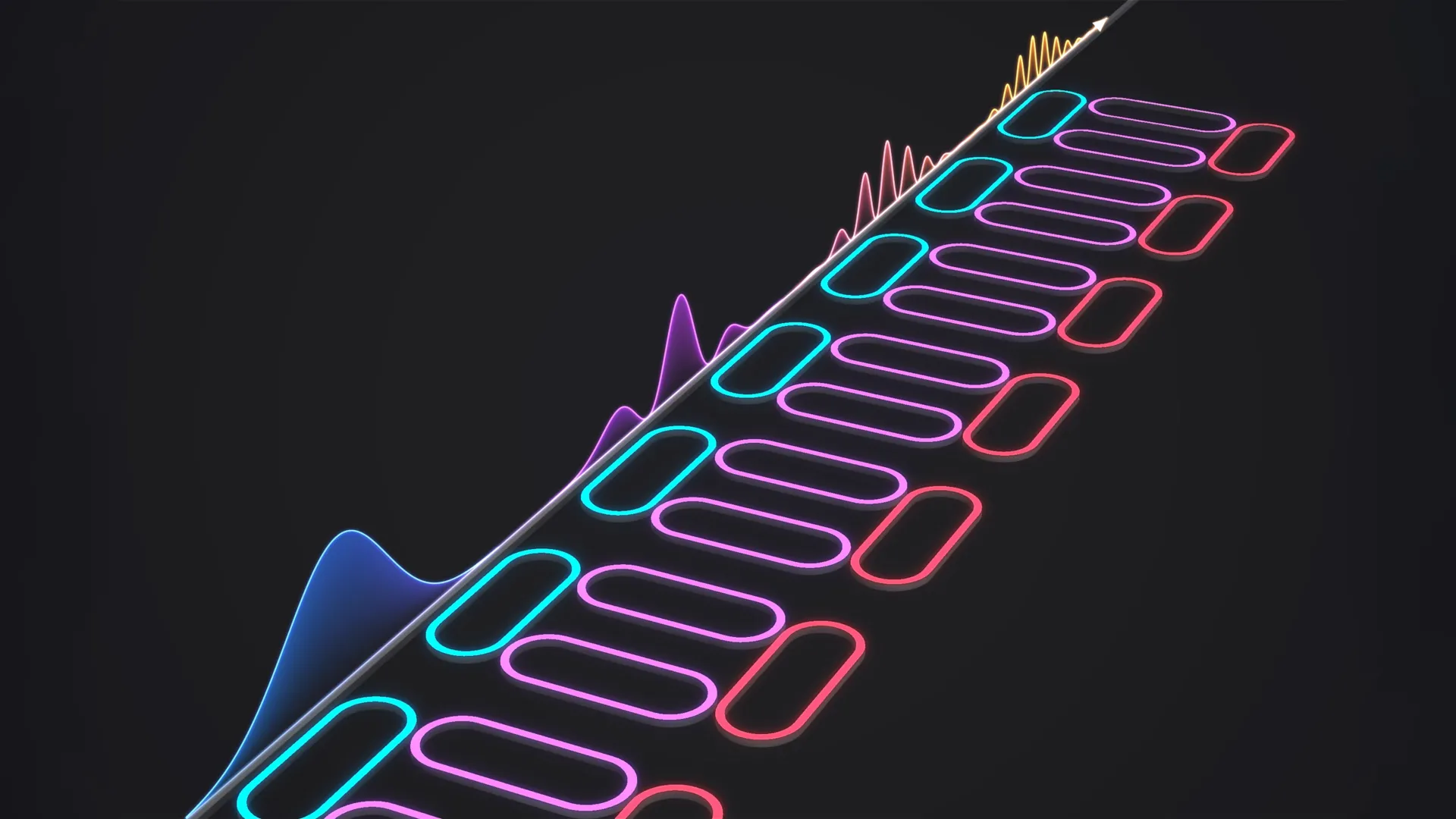

• The Unified State Breakthrough: Recognizing the limitations of static hardware, the SNU and University of Seoul team reimagined the core physics of CRIT systems. By unifying the "bright mode" and "dark mode" optical states and integrating two controllable loop couplers into the circuit architecture, the researchers successfully eliminated the need for rigid, single-purpose designs. The resulting chip can be reconfigured dynamically during operation, transforming fixed hardware into a programmable, software-analogous optical platform.

Supporting Data: Rigorous Simulations and Technical Validation

To prove that the theoretical framework could withstand real-world operational environments, the research team—led by co-first authors Dr. Seungkyun Park and Ph.D. student Beomjoon Chae—subjected their design to exhaustive numerical analyses and three-dimensional electromagnetic simulations.

The proposed CRIT-based architecture was modeled on a silicon nitride ($textSi_3textN_4$) photonic integrated circuit platform, a material widely favored for its low optical loss and compatibility with standard semiconductor fabrication processes.

Crucially, the team tested the resilience of the chip against a battery of non-ideal, real-world manufacturing and operational hazards, including:

• Intrinsic material propagation losses
• Variations in individual resonator quality factors ($Q$-factors)
• Backscattering and optical noise
• Coupling fluctuations between waveguides and resonators
• Phase errors within the active loop couplers
• Thermal crosstalk generated by adjacent components operating on the same chip

The simulation data yielded highly encouraging results. Even under rigorous, highly degraded environmental conditions, the programmable photonic structure maintained stable operation. Furthermore, the numerical models confirmed that the circuit could dynamically adjust optical pulse delay times without degrading overall signal processing performance. The system also demonstrated the ability to execute frequency conversions on the fly, eliminating the need for bulky, specialized auxiliary components.

Official Responses: Insights from the Research Team

The implications of the study extend far beyond theoretical physics, offering a tangible roadmap for the semiconductor and telecommunications industries.

Professor Namkyoo Park, co-corresponding author of the study from Seoul National University, emphasized the structural versatility of the new design.

"This research is significant in that it proposes a new design principle that allows the flow of light within photonic integrated circuits to be reconfigured as needed, greatly enhancing design flexibility," said Professor Park. "We plan to expand this technology toward large-scale programmable photonic integrated circuits based on silicon photonics and photonic AI technologies."

Reflecting on the methodology behind the breakthrough, co-first author Dr. Seungkyun Park—affiliated with the InnoCORE PICORE Center at KAIST and the Photonic Systems Laboratory at SNU—notied how a shift in perspective unlocked new technical capabilities.

"Through this study, we realized that reinterpreting conventional photonic resonator physics from a different perspective can serve as a starting point for discovering new functionalities in photonic integrated circuits," Dr. Park stated. "We plan to further develop this research toward practical device implementation and experimental validation."

Ph.D. student Beomjoon Chae, co-first author from SNU’s Intelligent Wave Systems Laboratory, echoed these sentiments, highlighting the team’s ongoing commitment to bridging the gap between theoretical optical physics and practical device engineering.

The research was supported by the South Korean Ministry of Science and ICT through several prestigious funding initiatives, including the Innovative Research Center (IRC) program, the Basic Research Laboratory (BRL) program, and the Young Researcher Program, alongside backing from the InnoCORE program (PICORE Center).

Implications: Transforming AI Infrastructure, Data Centers, and Beyond

The successful development of a programmable photonic integrated circuit capable of managing slow light carries profound implications for multiple high-tech sectors.

1. A Software-Defined Paradigm for Optics

By enabling a single chip to perform multiple, reconfigurable optical tasks—such as signal synchronization, adjustable delay lines, optical buffering, and frequency conversion—the technology mirrors the evolution of software-defined networking. Instead of swapping out physical hardware to change processing parameters, operators can reprogram the chip’s behavior dynamically to match shifting workload demands.

2. Alleviation of AI and Data Center Bottlenecks

As hyperscale data centers struggle to meet the power and bandwidth demands of generative AI workloads, optical interconnects are increasingly seen as the necessary successor to copper wiring. A programmable optical buffer chip could drastically reduce the energy footprint of server farms while optimizing data flow across distributed computing clusters, eliminating the latency traps that currently slow down massive parallel processing.

3. Miniaturization and Cost Reduction

Consolidating diverse signal-processing functions onto a single, adaptable silicon nitride chip will streamline the manufacturing of optical communication equipment, high-resolution sensor systems, and quantum optics hardware. Smaller, multi-functional chips naturally translate to lower production costs and broader commercial viability.

4. Catalyst for Emerging Industries

Over the long term, the foundational technology demonstrated by the SNU and University of Seoul team could accelerate innovation in fields that rely on ultra-low latency and massive data throughput. These include autonomous driving systems, next-generation 6G telecommunications, and advanced quantum computing architectures where precise photon timing and phase control are absolute prerequisites.

As the research team transitions from simulations to physical fabrication and experimental validation, the scientific community moves one step closer to realizing the full, unbridled potential of light-speed computing.
